All Packaging Machinery - Serving the packaging industry for over 60 years

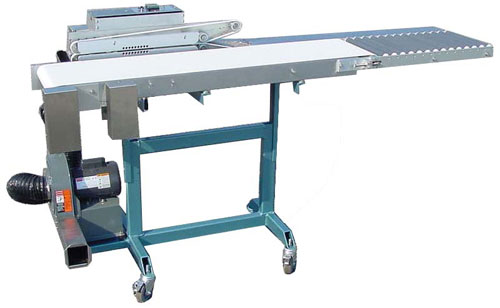

     USDA Approved smokeless and odorless Horizontal Conveyorized Rotary Band Sealing System with Bag Top Trimmer.
  • Specifically designed for Flat product applications, including Clothing, Toys, Household products, Disposables, Electronics, Paper, Books, Magazines, and Foods including tortillas, bakery goods and more.
  • Easy speed control adjustment with permanent magnet DC gearmotor along with full mechanical linkage allows for positive sealer to conveyor synchronization.
  • Able to seal Polyethylene, Polypropylene, Polymylar, Coextrusions, Polylaminates, Nylon, Foils and Shrink Films.
  • Sealing capacity allows variable speeds of up to 45 feet per minute with constant secure seals of 1/8”, 1/4” or 3/8” wide with bag top trimmer. Actual sealing speed depends on structure and thickness of material being sealed.
  • Seals are achieved through the use of special heavy duty wear-resistant laminated Teflon Bands.
  • Digital Temperature Control with PID Autotune maintains consistent heat and assures quality hermetic seals.
  • Hard Chrome plated sealing bars followed by Nickel plated cooling bars allow for maximum wear resistance.
  • Scaled down version of our larger HCBS model with the same seal head perfect for conserving floor space and increasing affordability.
  • Unit is designed with 5” long heating zone and 5” long cooling zone for greater flexibility in product sealing of difficult materials with temperatures up to 450°F.
  • Mounted on a 12” wide x 5’ long conveyor. 24” wide conveyor optional.
  • Shown with optional 2’ non-motorized roller infeed.
  • Positive vacuum scrap removal system with scrap accumulator.
  • Electrical 110 VAC 10 amps / 60 Cycle
  • No compressed air required
