All Packaging Machinery - Serving the packaging industry for over 60 years

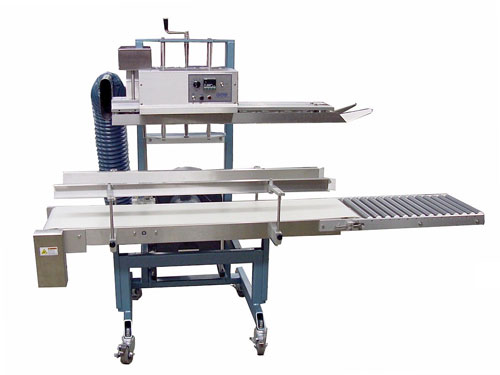

     This sealer is specifically designed to allow the seal to be extremely close to the product. Ideal system for sealing bulk packs of toilet paper, paper towels and diapers. Many other products can benefit from this special sealing system.
  • Upper sealing head is interfaced and synchronized with the variable speed lower conveyor, 12” wide x 5’ long with fully adjustable stainless steel Guide Rails. Adjustable height Sealing Assembly Floor Stand with crank handle and Vacuum System for trim scrap removal is standard.
  • This continuous band sealer will seal and trim Tyvek®, Foil, Polyethylene, Polypropylene, Nylon, Coextrusion, polylaminates and poly-coated paper materials.
  • Variable speeds up to 720 inches per minute (60 fpm) with new dual 3 phase inverter duty motor drive package.
  • Quality seals of 1/8”, 1/4” or 3/8” wide are achieved through the use of special heavy duty wear-resistant laminated Teflon bands.
  • Digital Temperature Control with PID Autotune maintains consistent heat and assures quality hermetic seals. Unit is designed with 5” long heating zone and 5” long cooling zone for greater flexibility in product sealing of difficult materials with temperatures up to 450 degrees Fahrenheit.
  • Hard Chrome plated sealing bars followed by Nickel plated cooling bars allow for maximum wear resistance.
  • Optional Casters (shown) for easy positioning are available upon request.
  • Custom configurations are available, inquire with our Sales Department with your application.
  • Electrical 110 VAC 20 amps/ 60 Cycle. No compressed air required.
