All Packaging Machinery - Serving the packaging industry for over 60 years

Welcome

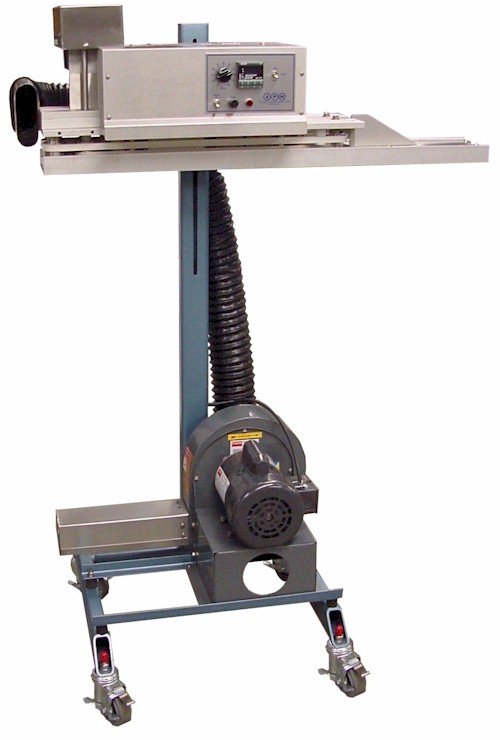

     Stand mounted  USDA approved verticle rotary sealing system

Features:
  • USDA approved rotary Vertical sealing system
  • Materials: Polypropylene, Polyethylene, Tyvek, Polymylar, Foil/PE, Cryovac
  • Coextrusions, Polylaminates, Nylon
  • Speeds up to 45 feet per minute with ultra quiet DC gear motor
  • Digital precise temperature controller maintains heat up to 500 degrees +/-2 degrees
  • 1/8", 1/4", or 3/8" integrity seals with high speed knife trim feature and scrap accumulator
  • Chrome plated sealing assembly followed by cooling section
  • Smokeless and Odorless sealing and trimming
  • No compressed air required, 110V, 1 phase, 60 cycle
  • Adjustable height sealing assemlby mounted on 4' high stand
  • Stainless steel shafting throughout with heavy duty gearing
  • Vertical Model VBS 3/8 available with 3/8" wide seal-without trim
  • Embossing one or two line coder available
  • Unit designed with all stainless steel covers
  • Positive Vacuum system for scrap removal with scrap accumulator
  • Optional seal validation available
  • Upper assembly constructed of stainless steel and anodized aluminum
