All Packaging Machinery - Serving the packaging industry for over 60 years

Welcome

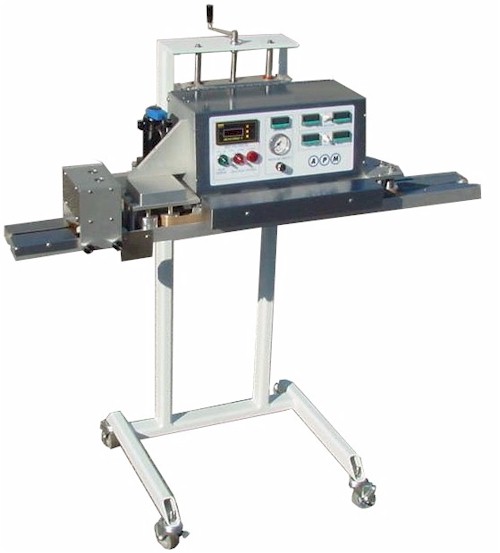

     Complete, Visible Validation on Continuous Band Sealer for Medical Pouches

Features:
  • USDA approved rotary band sealing system.
  • Unit is designed with 10" long heating zone, and 10" long cooling zone for greater flexibility in product sealing of difficult materials with temperatures up to 450 degrees +/-2 degrees Fahrenheit.
  • Temperature, speed control and cooling bar pressure can be validated.
  • Single line embosing code available.
  • Extra sealing capacity allows speeds up to 60' per minute with constant secure seals of 1/4" or 3/8" wide without bag top trimmer.
  • Designed to seal Nylon, Polyethylene, Polypropylene, Laminates, Tyvek/Polymylar and Foil.
  • Self contained compressed air, 110V, 1 Phase, 60 Cycle. No external air.
  • Seals are achieved through the use of special heavy duty wear-resistant laminated teflon bands.
  • Quad digital temperature controls maintain consistent heat and assures quality hermetic seals. Heat is generated from rear and front heaters or one set only as required using a simple on/off switch. Individual heating assemblies can be regulated due to Quad controls.
  • Easy quick changeover and cleaning of the Teflon Bands due to instant pressure release on bands placed in an open position. Uniform pressure on all sealing and cooling surfaces creates consistent quality validatable seals. Gauges are easy to read and highly visible.
  • Mounted on a heavy duty floor model adjustable stand with crank handle and can be ordered in the vertical or horizontal position. Vertical unit can be positioned over existing lower carry conveyor.
  • Chassis sealing assembly construction of stainless steel shafting throughout and anodized aluminum assuming longevity of-use. Chrome plated sealing assemblies reduces wear.
  • Dual Element Thermocouple: Each thermocouple has two junctions one for the temperature controller and one for temperature verification, ports supplied.
     Video of the VBS-3/8-DH-10-V
